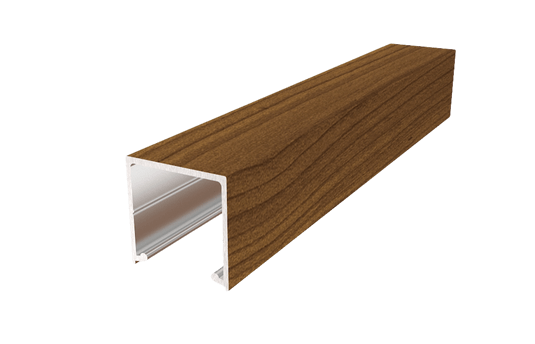

25x25mm Cover
| Code | DB02-25 |
| Width | 25mm |
| Depth | 25mm |
| Length | 6.5m |
| Weight | 0.26kg/m |
| Wall Thickness | 1.6mm |
25mm Series
Back to top
25mm Series
The QuickClick® 25mm Series offers a designer batten system with a consistent 25mm-wide base and a range of batten cover shapes and sizes. The easy-to-use system allows fast, seamless installation across a variety of design styles and applications.
Made from non-combustible and lower-carbon aluminium and finished with our range of Super Durable™ finishes, the 25mm Series delivers exceptional longevity, low maintenance, and a premium designer finish for any project.
Get a free quote
Generate specs
Request a sample
Request a Quote
Please complete the below form and one of our sales representatives will be in touch.
Tech Specs Generator
Request a sample
Please complete the below form and one of our sales representatives will be in touch.
Profiles
25x25mm Cover
25x50mm Cover
25x75mm Cover
25x40mm Radius Cover
32x27mm Circular Cover
25mm Base
25mm SpaceBase®
25mm Triple SpaceBase®

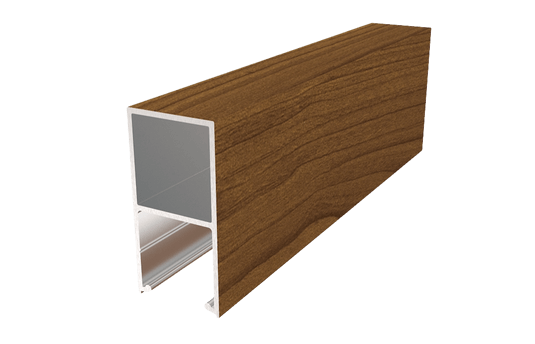

25x50mm Cover
| Code | DB02-50 |
| Width | 25mm |
| Depth | 50mm |
| Length | 6.5m |
| Weight | 0.57kg/m |
| Wall Thickness | 1.6mm |

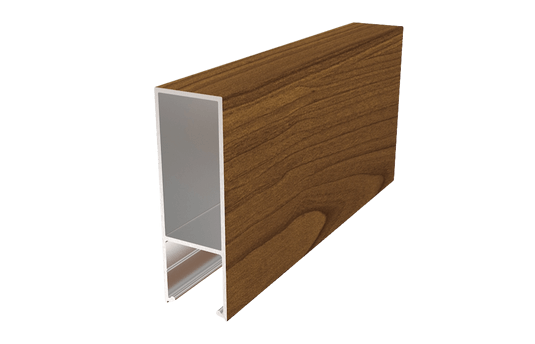

25x75mm Cover
| Code | DB02-75 |
| Width | 25mm |
| Depth | 75mm |
| Length | 6.5m |
| Weight | 0.81kg/m |
| Wall Thickness | 1.6mm |

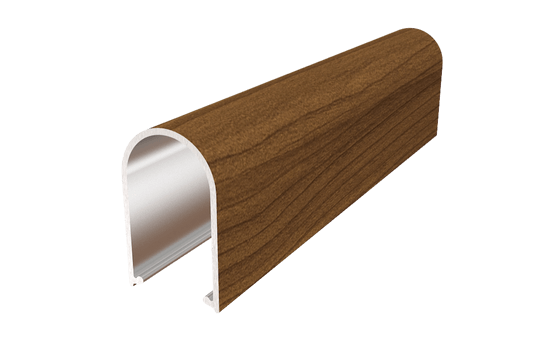

25x40mm Radius Cover
| Code | DB02-40R |
| Width | 25mm |
| Depth | 40mm |
| Length | 6.5m |
| Wall Thickness | 1.5mm |

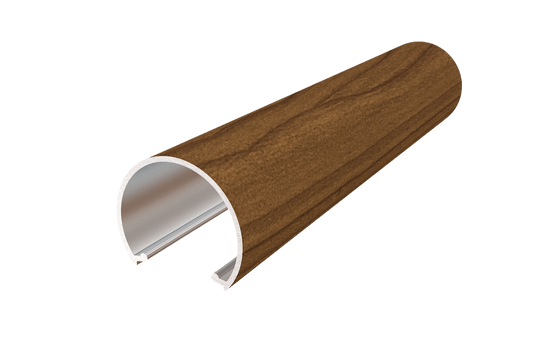

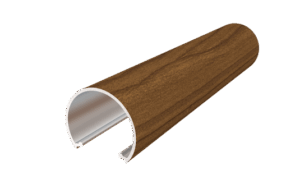

32x27mm Circular Cover
| Code | DB02-32 |
| Width | 32mm |
| Depth | 27mm |
| Length | 6.5m |
| Weight | 0.26kg/m |
| Coverage | 1.625m2 |
| Wall Thickness | 1.2mm |

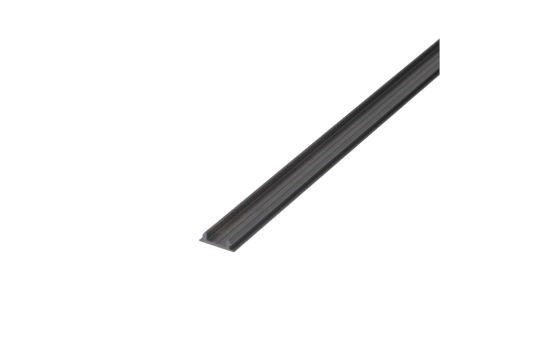

25mm Base
| Code | DB02-B |
| Width | 25mm |
| Height | - |
| Length | 6.5m |
| Weight | 0.16kg/m |

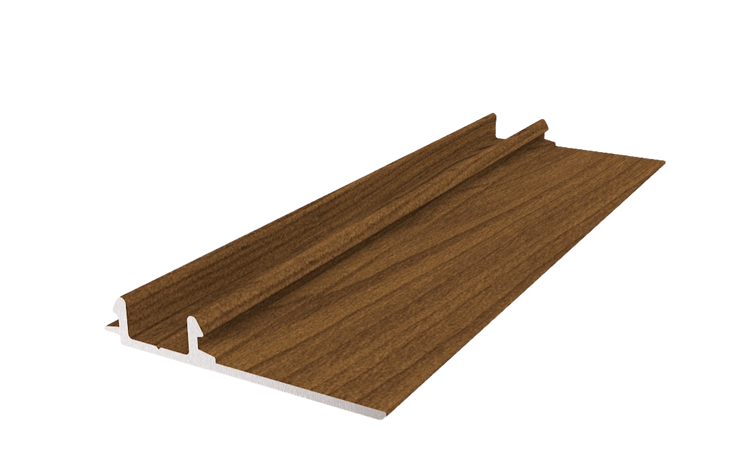

25mm SpaceBase®
| Code | DB02-SB |
| Width | 50mm |
| Depth | 2mm |
| Height | - |
| Length | 6.5m |
| Weight | 0.32kg/m |

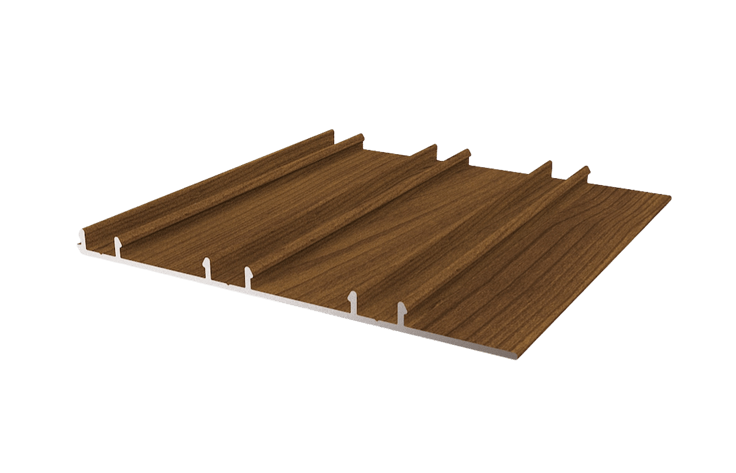

25mm Triple SpaceBase®
| Code | DB02-3SB |
| Width | 150mm |
| Depth | 2mm |
| Height | - |
| Length | 6.5m |
| Weight | 1.05kg/m |
25x25mm End Cap
| Code | ECE2525-2P |
| Width | 25mm |
| Depth | 25mm |
25x50mm End Cap
| Code | ECE5025-2P |
| Width | 25mm |
| Depth | 50mm |
25x75mm End Cap
| Code | ECE7525-2P |
| Width | 25mm |
| Depth | 75mm |
32mm Circ. End Cap
| Code | ECP32C |
| Width | 32mm |
| Depth | 32mm |
25x100mm End Cap
| Code | ECP10025-2P |
| Width | 25mm |
| Depth | 100mm |
| Wall Thickness |
