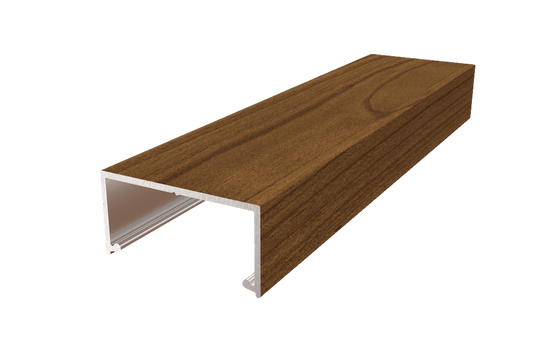

40x20mm Cover
| Code | DB03-20 |
| Width | 40mm |
| Depth | 20mm |
| Length | 6.5m |
| Weight | 0.325kg/m |
| Wall Thickness | 1.4mm |
40mm Series
Back to top
40mm Series

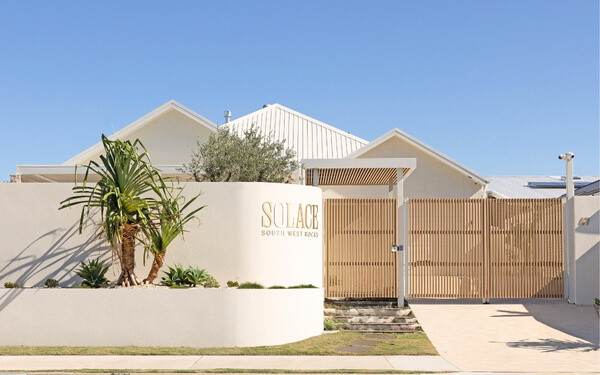

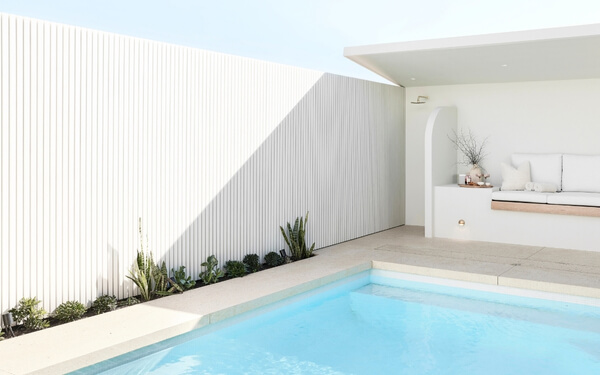

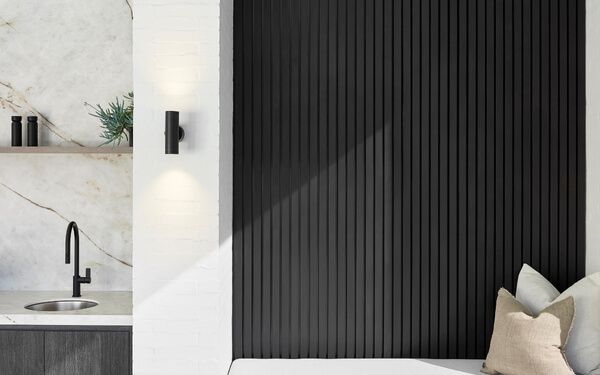

The 40mm Series now offers the lightest batten profile in the QuickClick range*. Perfect for applications where weight is a key consideration — like garage doors, screening, facades, and ceilings — the 40mm Series helps to reduces weight without compromising on performance.
With three batten cover sizes and three base options, the 40mm Series is aligned with traditional timber batten sizes and is an ideal option when looking for a more durable and longer-lasting timber alternative.
Like all our products, the 40mm Series battens come pre-finished in your choice of our wide range of low-maintenance finishes, including our premium Super Durable DecoWood® powder coat finish.
*By sqm and based on spacing half of the batten width.
Get a free quote
Generate specs
Request a sample
Request a Quote
Please complete the below form and one of our sales representatives will be in touch.
Tech Specs Generator
Request a sample
Please complete the below form to request your free product sample or colour swatch.
An Award-winning System
The DecoBatten® QuickClick™ system was awarded an honourable mention in the 2020 Architectural Product Awards and received a prestigious Good Design Award Winner Accolade in 2022.
Profiles
40x20mm Cover
40x40mm Cover
40x80mm Cover
40x65mm Radius Cover
40x25mm Concave Cover
40x20mm Convex Cover
40mm Base
40mm SpaceBase®
40mm Double SpaceBase®

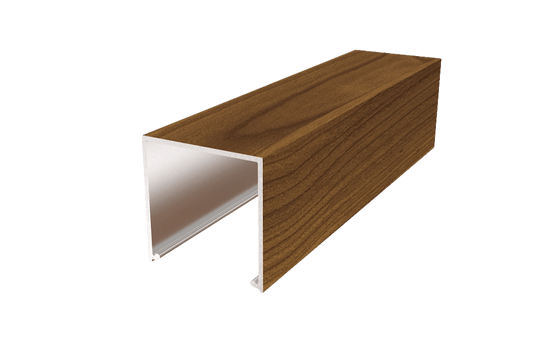

40x40mm Cover
| Code | DB03-40 |
| Width | 40mm |
| Depth | 40mm |
| Length | 6.5m |
| Weight | 0.496kg/m |
| Wall Thickness | 1.6mm |

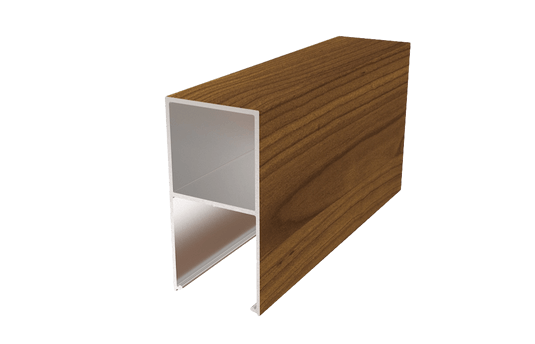

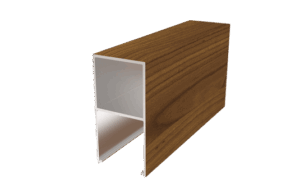

40x80mm Cover
| Code | DB03-80 |
| Width | 40mm |
| Depth | 80mm |
| Length | 6.5m |
| Weight | 1.088kg/m |
| Wall Thickness | 1.5mm |

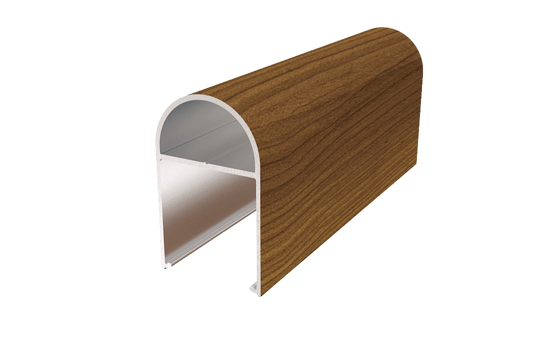

40x65mm Radius Cover
| Code | DB03-65R |
| Width | 40mm |
| Depth | 65mm |
| Length | 6.5m |
| Weight | 0.863kg/m |

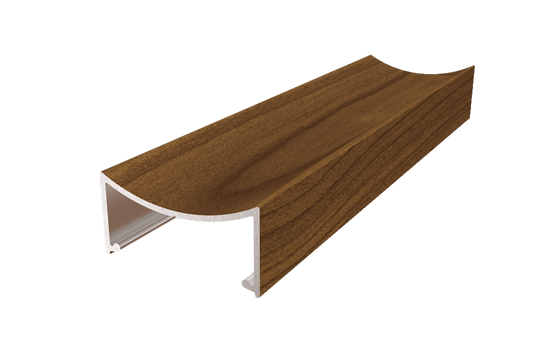

40x25mm Concave Cover
| Code | DB03-CCV |
| Width | 40mm |
| Depth | 25mm |
| Length | 6.5m |
| Weight | 0.318kg/m |

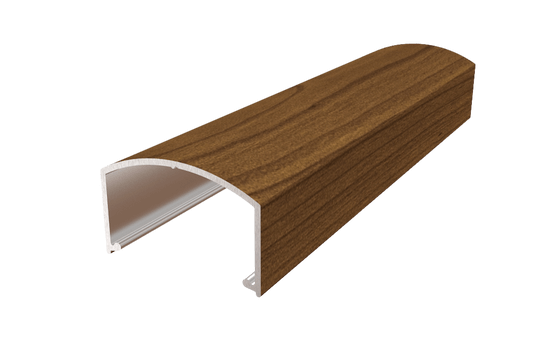

40x20mm Convex Cover
| Code | DB03-CVX |
| Width | 40mm |
| Depth | 20mm |
| Length | 6.5m |
| Weight | 0.324kg/m |

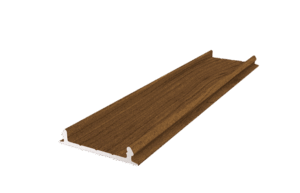

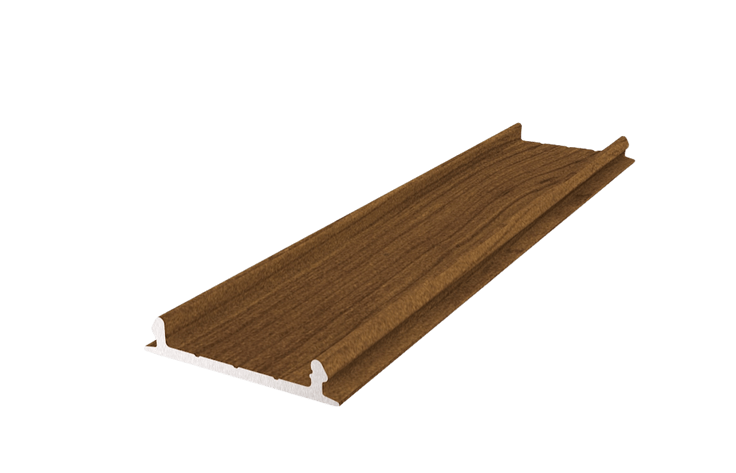

40mm Base
| Code | DB03-B |
| Width | 40mm |
| Length | 6.5m |
| Weight | 0.243kg/m |

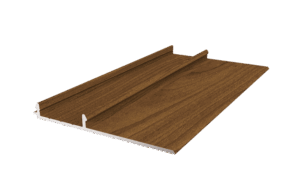

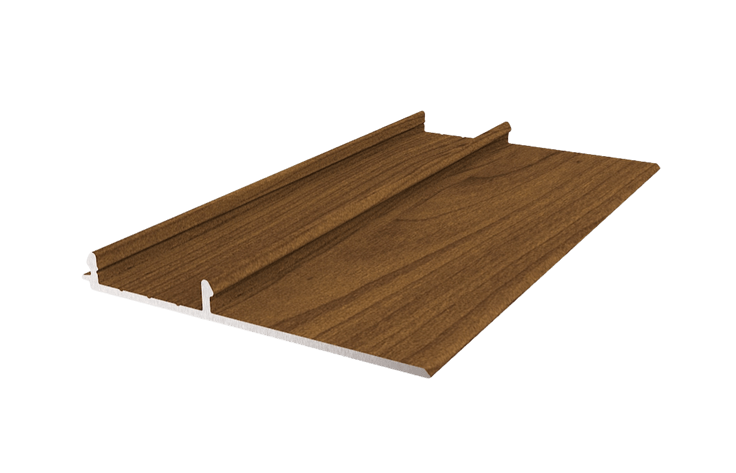

40mm SpaceBase®
| Code | DB03-SB |
| Width | 80mm |
| Length | 6.5m |
| Weight | 0.472kg/m |

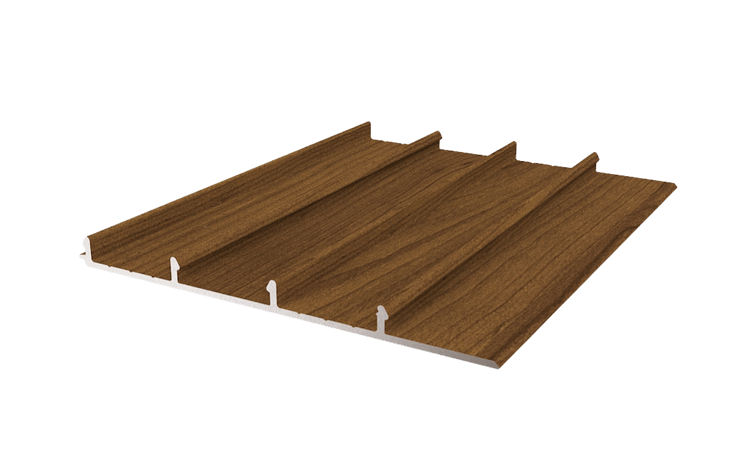

40mm Double SpaceBase®
| Code | DB03-2SB |
| Width | 120mm |
| Length | 6.5m |
| Weight | 0.744kg/m |
40x20mm End Cap
| Code | ECE4020-2P |
| Width | 40mm |
| Depth | 20mm |
40x40mm End Cap
| Code | ECE4040-2P |
| Width | 40mm |
| Depth | 40mm |
40x80mm End Cap
| Code | ECE8040-2P |
| Width | 40mm |
| Depth | 80mm |
