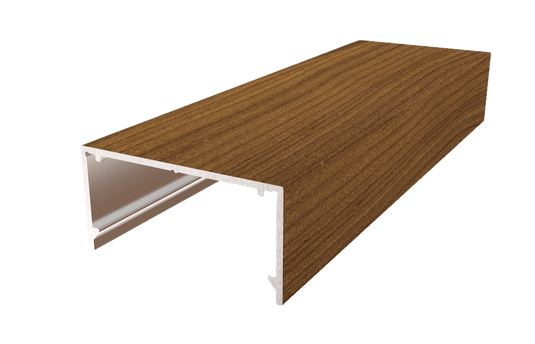

50x25mm Cover
| Code | DC-DB01-25 |
| Width | 50mm |
| Depth | 25mm |
| Length | 6.5m |
| Wall Thickness | 1.6mm |
50mm Series
Back to top
50mm Series
The DecoBatten® QuickClick® 50mm series is a patented two-piece aluminium batten system that offers exceptional performance and versatility.
Designed to offer a lightweight timber batten alternative, the 50mm wide base can be paired with batten covers in a wide range of depths and shapes, allowing for ultimate customisation and enhanced functionality.
The innovation Australian design ensures ease of installation while providing superior durability and a sophisticated finish. Perfect for builders and architects seeking a high-quality, adaptable solution for both residential and commercial projects.
Get a free quote
Generate specs
Request a sample
Request a Quote
Please complete the below form and one of our sales representatives will be in touch.
Tech Specs Generator
Request a sample
Please complete the below form and one of our sales representatives will be in touch.
Profiles
50x25mm Cover
50x50mm Cover
50x75mm Cover
50x80mm Angle Cover
50x80mm Radius Cover
50x100mm Cover
50x150mm Cover
50x200mm Cover
50x250mm Cover
50mm Base
50mm SpaceBase®
50mm Double SpaceBase®
50mm Coupler

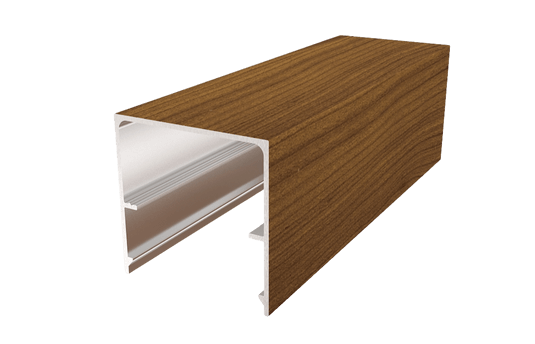

50x50mm Cover
| Code | DC-DB01-50 |
| Width | 50mm |
| Depth | 50mm |
| Length | 6.5m |
| Wall Thickness | 1.6mm |

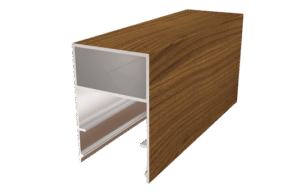

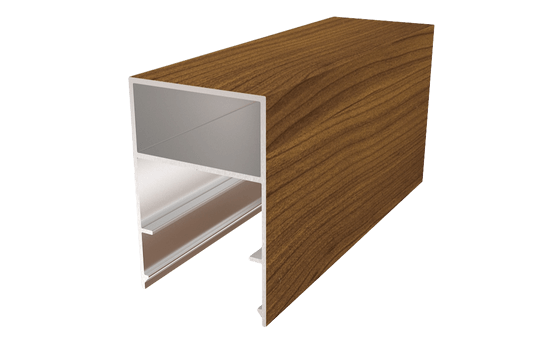

50x75mm Cover
| Code | DC-DB01-75 |
| Width | 50mm |
| Depth | 75mm |
| Length | 6.5m |
| Weight | 1.16kg/m |
| Wall Thickness | 1.5mm |

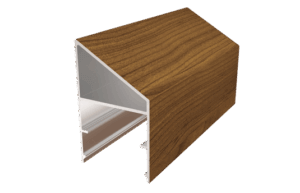

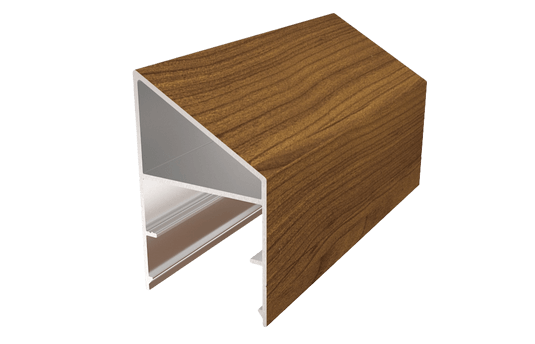

50x80mm Angle Cover
| Code | DB01-80A |
| Width | 50mm |
| Depth | 80mm |
| Length | 6.5m |
| Wall Thickness | 1.6mm |

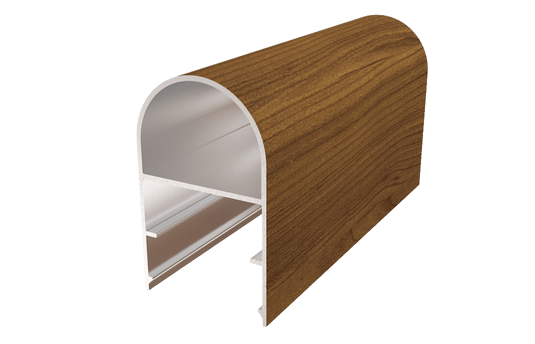

50x80mm Radius Cover
| Code | DB01-80R |
| Width | 50mm |
| Depth | 80mm |
| Length | 6.5m |
| Weight | 1.01kg/m |
| Wall Thickness | 1.6mm |

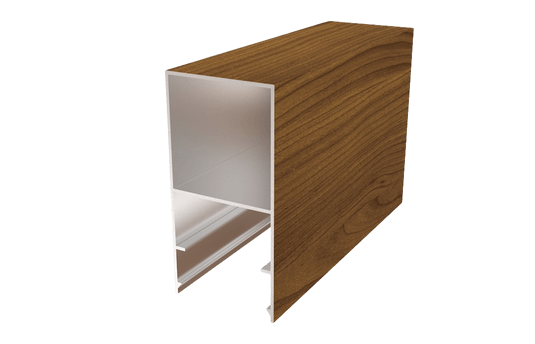

50x100mm Cover
| Code | DB01-100 |
| Width | 50mm |
| Depth | 100mm |
| Length | 6.5m |
| Wall Thickness | 2mm |

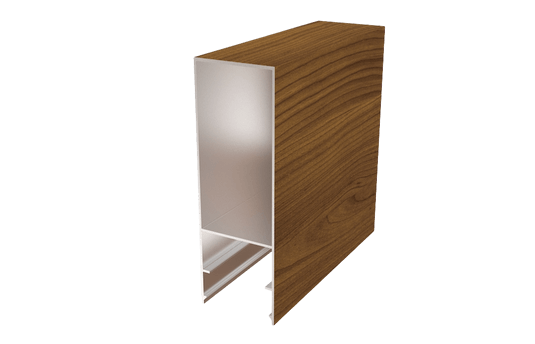

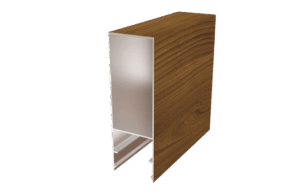

50x150mm Cover
| Code | DB01-150 |
| Width | 50mm |
| Depth | 150mm |
| Length | 6.5m |
| Weight | 1.66kg/m |
| Wall Thickness | 2mm |

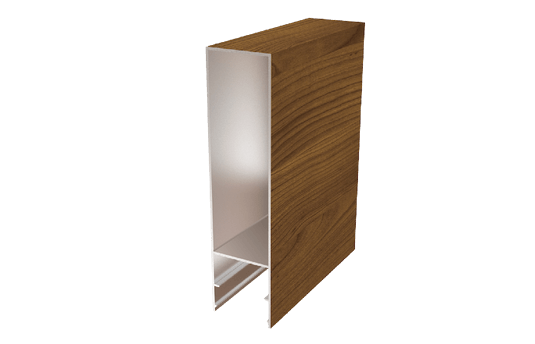

50x200mm Cover
| Code | DB01-200 |
| Width | 50mm |
| Depth | 200mm |
| Length | 6.5m |
| Weight | 2.65kg/m |
| Wall Thickness | 2mm |

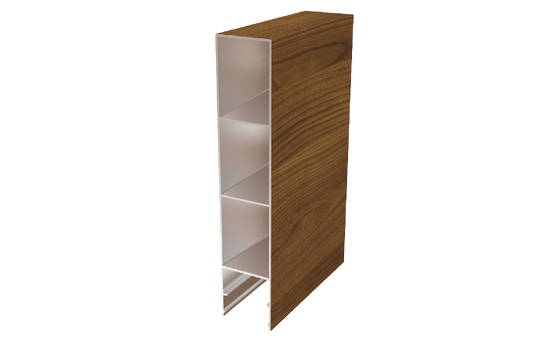

50x250mm Cover
| Code | DB01-250 |
| Width | 50mm |
| Depth | 250mm |
| Length | 6.5m |
| Weight | 3.65kg/m |
| Wall Thickness | 2mm |

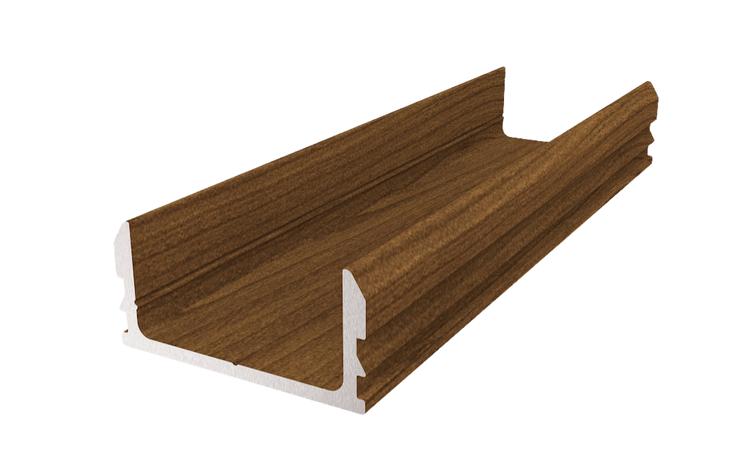

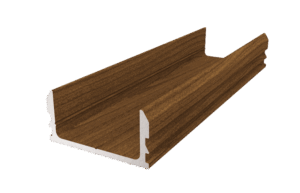

50mm Base
| Code | DB01-B |
| Width | 50mm |
| Length | 6.5m |
| Weight | 0.61kg/m |

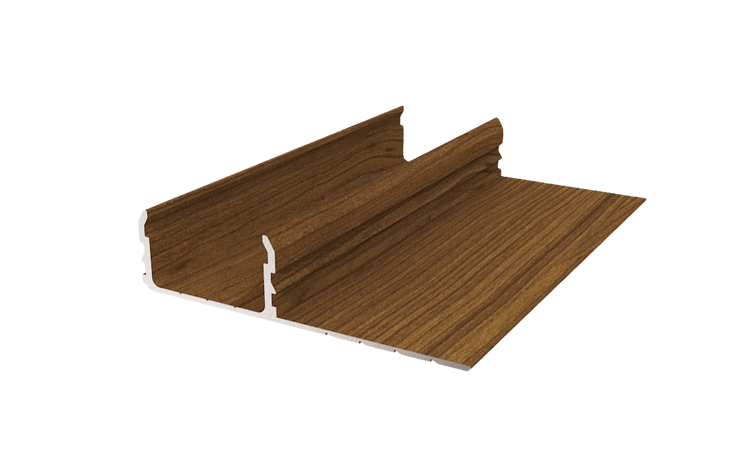

50mm SpaceBase®
| Code | DB01-SB |
| Width | 100mm |
| Length | 6.5m |
| Weight | 0.76kg/m |

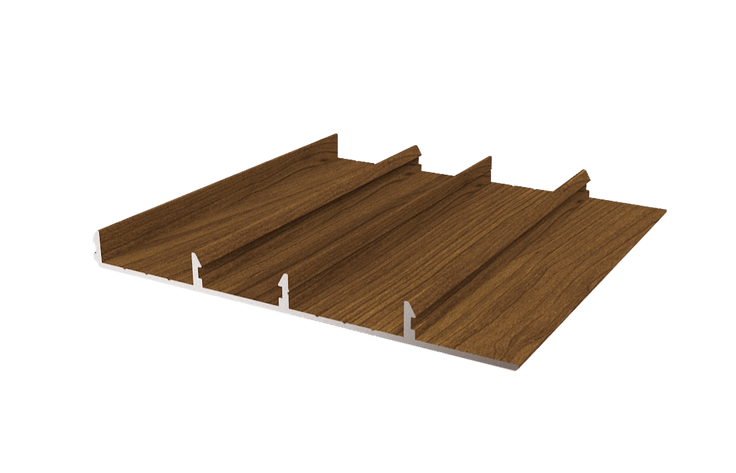

50mm Double SpaceBase®
| Code | DB01-2SB |
| Width | 150mm |
| Length | 6.5m |
| Weight | 1.13kg/m |

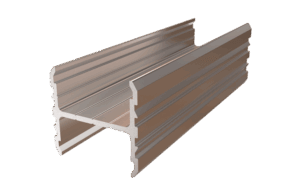

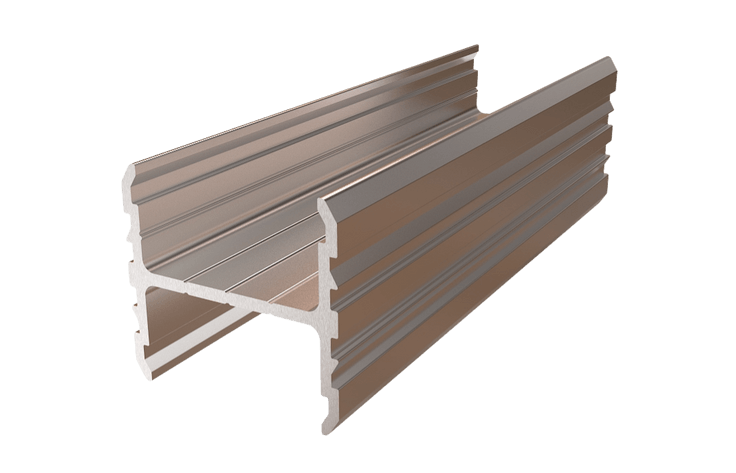

50mm Coupler
| Code | DB01-COUPLER |
| Width | 50mm |
| Depth | 50mm |
| Length | 6.5m |
| Weight | 0.89kg/m |
50x25mm End Cap
| Code | ECE5025-2P |
| Width | 50mm |
| Depth | 25mm |
50x50mm End Cap
| Code | ECE5050-2P |
| Width | 50mm |
| Depth | 50mm |
50x75mm End Cap
| Code | ECE7550-2P |
| Width | 50mm |
| Depth | 75mm |
50x80mm Angle End Cap Left
| Code | ECP8050AL |
| Width | 50mm |
| Depth | 80mm |
50x80mm Angle End Cap Right
| Code | ECP8050AR |
| Width | 50mm |
| Depth | 80mm |
50x80mm Radius End Cap
| Code | ECP8050R |
| Width | 50mm |
| Depth | 80mm |
50x100mm End Cap
| Code | ECE510050-2P |
| Width | 50mm |
| Depth | 100mm |
50x150mm End Cap
| Code | ECE15050-2P |
| Width | 50mm |
| Depth | 150mm |
50x200mm End Cap
| Code | ECE20050-2P |
| Width | 50mm |
| Depth | 200mm |
50x250mm End Cap
| Code | ECE25050-2P |
| Width | 50mm |
| Depth | 250mm |
